HDPE V Lock Liner -Concrete Protective Liner

The basic situation of HDPE multi-point anchor plate and various performance indicators

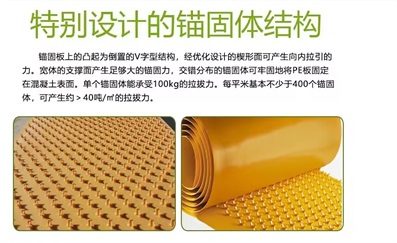

The specially designed plate structure of multi-point anchorage PE board is closely integrated with coagulable materials, forming a solid plastic protective layer on the surface of concrete, so that the concrete building surface has the performance of plastic, greatly improving the concrete anti-corrosion, anti-seepage, anti-cracking ability, and greatly improving the performance and life of the building. The drawing strength can exceed 40 tons/square meter, completely changing the existing anticorrosion process of cement products, and becoming a protective layer with the same life of the building. And they come in a variety of sizes and colors.

Can be selected according to the need: thickness 1.0-5.0mm, anchor solid length 10.0-20.0mm. Anchor solids are available in single, double and multi-legged options. Color: White, yellow, black, blue, gray, can also be customized.

Because HDPE multi-point anchor plate is made of high-density polyethylene, it has the same anti-corrosion properties as plastic, and can resist almost all acids, alkalis, salts and other chemicals in addition to individual solvents, and is a first-class anti-corrosion material.

   HDPE multi-point anchor plate has excellent anti-seepage performance, PE material water absorption is very low, anti-seepage ability is strong. The elongation at break is greater than 300%, which can effectively seal all kinds of fine cracks that may appear.

  HDPE multi-point anchor plate is integrated with concrete, with a tensile strength of more than 40 tons/square meter, and has excellent impact and shear resistance. The use of temperature range is also very wide, can also be UV resistant, can be used within -20° -60 °, change the temperature resistant thermoplastic can reach more than 100 ° C, add anti-ultraviolet materials can be used in strong ultraviolet environment. These factors also ensure that the service life of the HDPE multi-point anchor plate can reach at least 50 years, or even longer.

The surface of the HDPE multi-point anchor plate is very smooth, the friction coefficient can reach 0.009, and the water flow capacity is very strong, which also makes the inner wall of the plate not easy to scale, not easy to remain, not easy to deposit.
