High Density Polyethylene Round Bar Rod Wear Resistance Rod

High Density Polyethylene Round Bar Rod Wear Resistance Rod

Material: UHMWPE/HDPE/PP/Nylon
Produce Procedure: CNC, Injection etc.
Shape: Any, according to the drawing
Size: Φ20,Φ30,Φ50,Φ80,Φ100,Φ150 and other size
Color: Black, White, Yellow, Green, Blue etc.
Fast shipment, short production time, superior quality


PRODUCTS DESCRIPTION

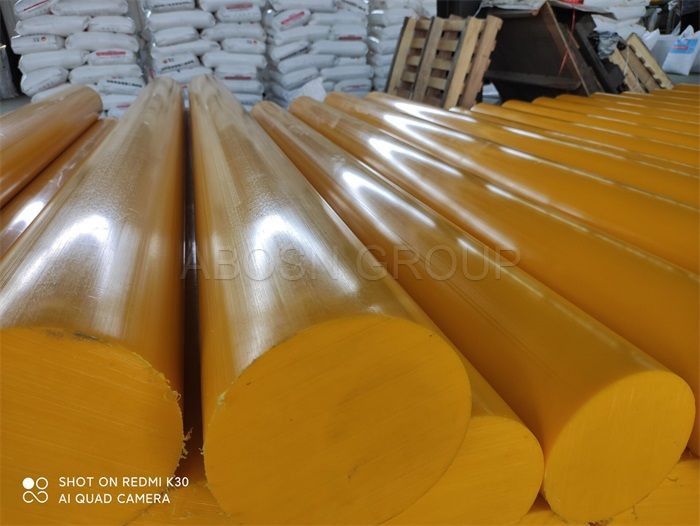

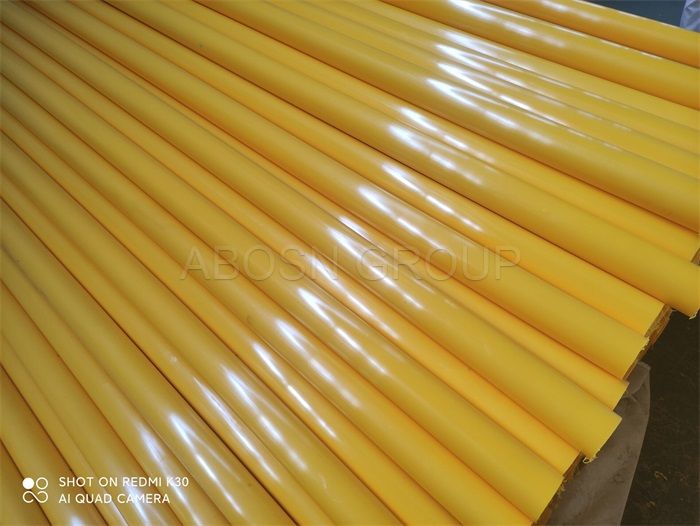

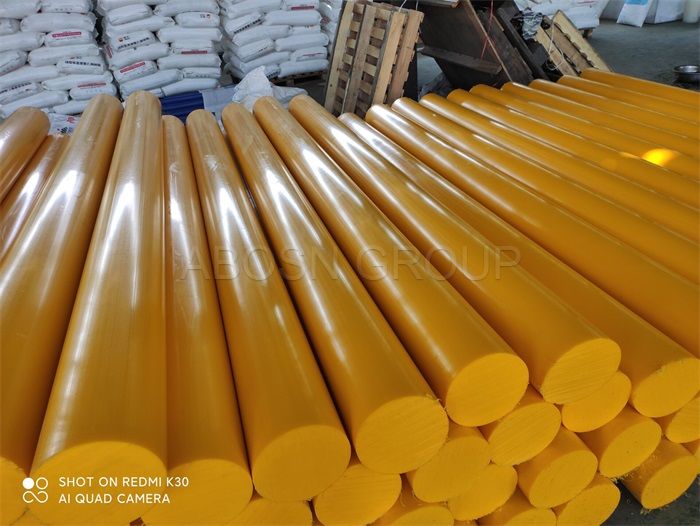

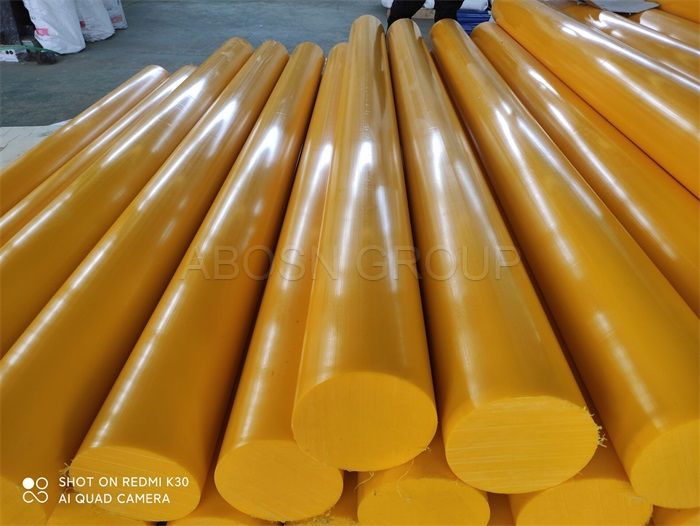

Extruded pe polyethylene plastic rod HDPE solid round rod

PE is more rigid and harder than lower density materials. It also has a higher tensile strength, four times that of low density polyethylene, and it is three times better in compressive strength.

Abrasion Resistant

The extremely high molecular weight of HDPE combined with its very low coefficient of friction provides and excellent abrasion resistant product preventing gouging, scuffing and scraping.
Exceptional Impact Strength
PE is one of the highest impact resistant thermoplastics available and maintains excellent machinability and self- lubricating characteristics. Properties are maintained even at extremely low temperatures.
Chemical Resistant
PE has very good chemical resistance of corrosives as well as stress cracking resistance (with the exception of strong oxidizing acids at elevated temperatures). Certain hydrocarbons cause only a light surface swelling at moderate temperature.
Water Resistant
Moisture and water (including saltwater) have no affect on HDPE. It can be used in fresh and salt water immersion applications.

 The properties of Extruded pe polyethylene plastic rod HDPE solid round rod

Property

Unit

Value

Density

g/cm3

0.93-0.96

Average molecular weight

 g/mol

3million- 10 million

Tensile strength (23°C in air)

MPa

22

Breaking strength

MPa

42

Tensile strain at break

%

600

Charpy impact strength (notched)

mJ/mm2

No break

Ball indentation hardness

N/mm2

42

Shore D hardness

--

65-70

Abrasion

%

70-80, steel = 100

Static Friction Coefficient

--



0.16

Kinetic Friction Coefficient

--



≤0.10

Water Absorption

--

NIL

Elongation at break at 23 degress

%

300

Temperature resistance

°C

-269 to +85

Melt Temperature

°C

130-140



FAQ

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
