Plastic HDPE ice hockey court barrier dasher board

1,For our HDPE ice hockey court barrier dasher board size:2000（L）*1200（H）*75 mm usually according to your drawings requirement to customized

2,Material: hdpe boards,Aluminium frame,Iron frame.

3,Surface: smooth surface

4,Color :black ,yellow, red, blue, green ,white and other color can be customized.

Inquire Now

PRODUCTS DESCRIPTION

ABOSN HDPE(High Density Polyethylene) dasher boards allows for indoor and outdoor soccer, inline hockey, football, ice skating and other sports to be programmed in your building or outdoor with little changeover required.

The properties of HDPE :

Property	Unit	Value
Density	g/cm3	0.93-0.96
Average molecular weight	g/mol	3million- 10 million
Tensile strength (23°C in air)	MPa	22
Breaking strength	MPa	42
Tensile strain at break	%	600
Charpy impact strength (notched)	mJ/mm2	No break
Ball indentation hardness	N/mm2	42
Shore D hardness	--	65-70
Abrasion	%	70-80, steel = 100
Static Friction Coefficient	--	≤0.16
Kinetic Friction Coefficient	--	≤0.10
Water Absorption	--	NIL
Elongation at break at 23 degress	%	≥300
Temperature resistance	°C	-269 to +85
Melt Temperature	°C	130-140

POLY FACING

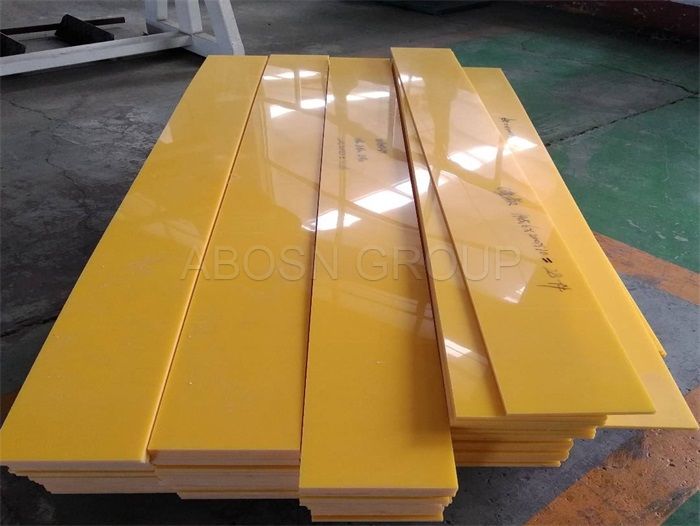

High density polyethylene puckboard, sheets for surfacing existing or new dasherboards
Thickness: .220″, .250″, .375″, .500″
Standard Sizes: 48″ x 96″ , 42″ x 96″
Custom sizes available
Colours: White, Red, Blue, Light Blue, Yellow, Gold
Options: UV stabilized, pre-drilled, countersunk

CAP RAIL & KICK PLATE

High-density polyethylene

Thickness: .500”, x .750”, 1.0”96”

lengths cut to size; straight or radius

Colours: Red, Blue, Light Blue, Yellow, Gold

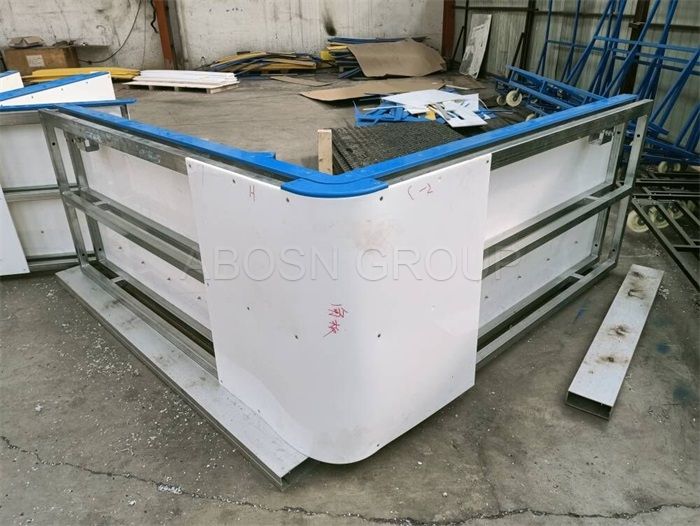

Available as either steel or aluminum construction, all of our dasher board systems are custom designed, manufactured and installed by us to your specifications. When you purchase a dasher board system from ABOSN you are guaranteed to get the best quality product at a competitive price.

Retrofit or new construction
Aluminum and steel dasherboard systems
Permanent and portable systems
Stainless steel hardware standard on all systems
Powder coated panels available any colour for both aluminum and steel frames
Prefabricated or on-site build
Demountable systems for easy conversion in multi-purpose facilities
Supported or seamless systems available
Contact us today to discuss your needs or to receive a quote based on your specific requirements.

FAQ

Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: Are you trading company or manufacturer?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
