cost effective cheap low price artificial ice rink synthetic ice

Recommended size:

Board: 2000x1200x10mm

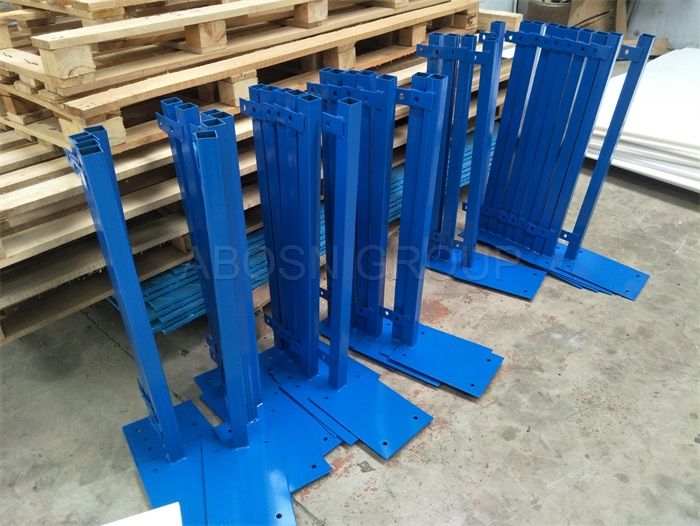

Triangle Support: 50x25x2mm

Bracket Support: 50x50x2mm

PRODUCTS DESCRIPTION

Product Description

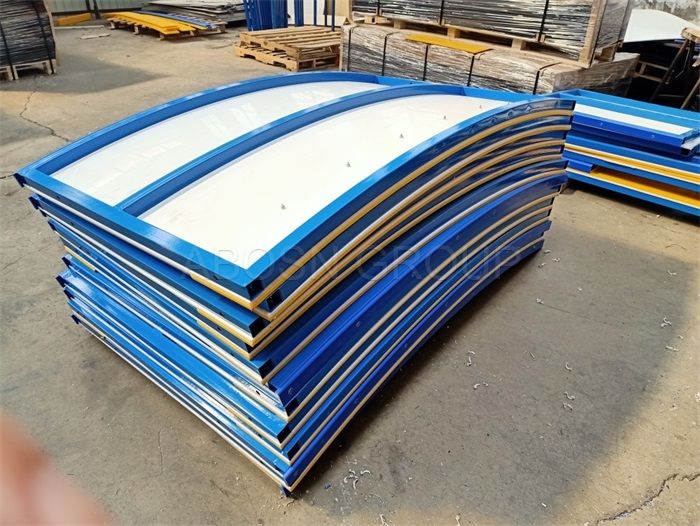

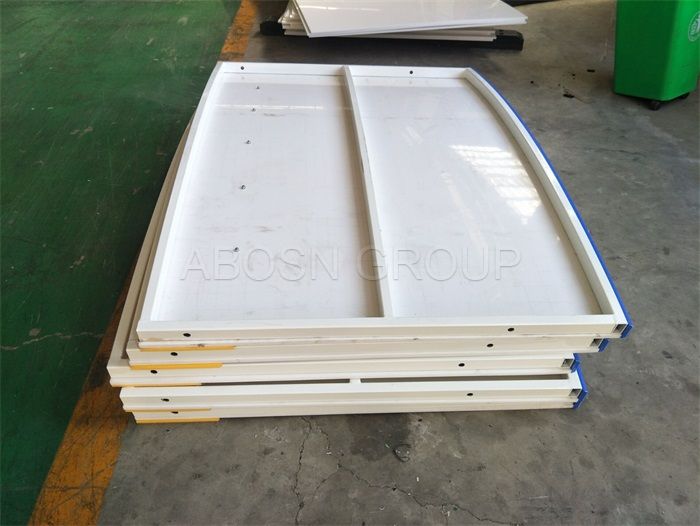

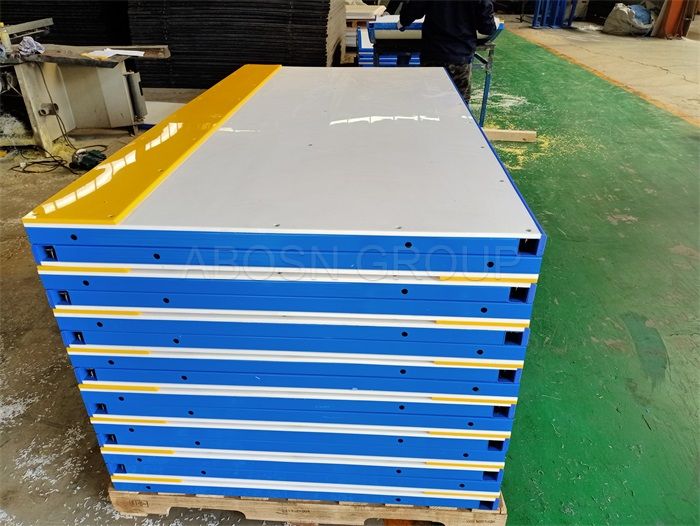

Did you see the dasher boards? Its material is HDPE and UHMW-PE, it includes panel, steel frame, steel triangular support, handrail and screw. The detailed specification will be made according to your detailed

requirement

Every piece is hand crafted by expert tradesmen with the highest quality materials to ensure quality and durability and comes with a 5 year warranty. Ideal for either indoor or outdoor backyard rinks, arenas, commercial or residential projects. Easily transported and assembled and stored in the off season. Comes with all required connection hardware. Constructed of 1/2" thick high density polyethylene facing, specially treated for UV protection and warping.
Comes in 48''H standard heights. Modular pieces allow for complete customization and scalability for any size rink.
Custom lengths available on request.
Colour Options:

Blue Cap Rail, Gold Kick Plate, White Facing Colour
Any color you want

Application:

ABOSN HDPE(High Density Polyethylene) dasher boards allows for indoor and outdoor soccer, inline hockey, football, ice skating and other sports to be programmed in your building or outdoor with little changeover required.

The properties of HDPE :

Property	Unit	Value
Density	g/cm3	0.93-0.96
Average molecular weight	g/mol	3million- 10 million
Tensile strength (23°C in air)	MPa	22
Breaking strength	MPa	42
Tensile strain at break	%	600
Charpy impact strength (notched)	mJ/mm2	No break
Ball indentation hardness	N/mm2	42
Shore D hardness	--	65-70
Abrasion	%	70-80, steel = 100
Static Friction Coefficient	--	≤0.16
Kinetic Friction Coefficient	--	≤0.10
Water Absorption	--	NIL
Elongation at break at 23 degress	%	≥300
Temperature resistance	°C	-269 to +85
Melt Temperature	°C	130-140

POLY FACING

High density polyethylene puckboard, sheets for surfacing existing or new dasherboards
Thickness: .220″, .250″, .375″, .500″
Standard Sizes: 48″ x 96″ , 42″ x 96″
Custom sizes available
Colours: White, Red, Blue, Light Blue, Yellow, Gold
Options: UV stabilized, pre-drilled, countersunk

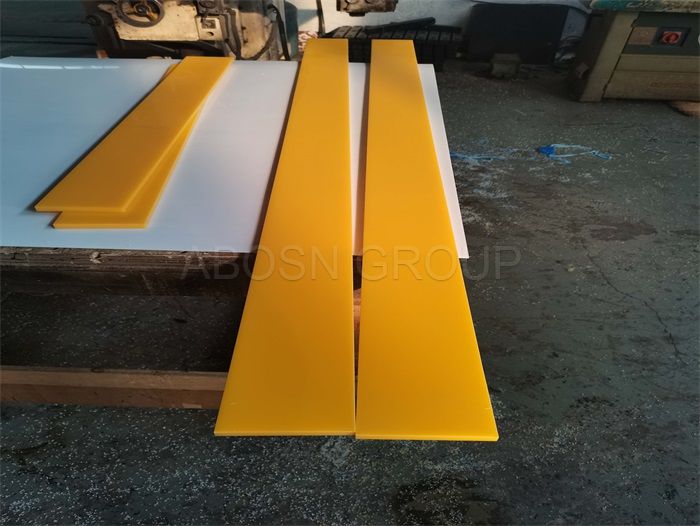

CAP RAIL & KICK PLATE

High-density polyethylene

Thickness: .500”, x .750”, 1.0”96”

lengths cut to size; straight or radius

Colours: Red, Blue, Light Blue, Yellow, Gold

Available as either steel or aluminum construction, all of our dasher board systems are custom designed, manufactured and installed by us to your specifications. When you purchase a dasher board system from ABOSN you are guaranteed to get the best quality product at a competitive price.

Retrofit or new construction
Aluminum and steel dasherboard systems
Permanent and portable systems
Stainless steel hardware standard on all systems
Powder coated panels available any colour for both aluminum and steel frames
Prefabricated or on-site build
Demountable systems for easy conversion in multi-purpose facilities
Supported or seamless systems available
Contact us today to discuss your needs or to receive a quote based on your specific requirements.
