Abosn produce all kinds of ground protection mats to meet different customer demands.Our rugged ground protection mats make the going easy when you need to move heavy vehicles and quipment over soft or muddy ground.These composite mats also proved a durable ,uniform suiface to stabilize heavy equipment on poor ground conditions or access to special environments.For more general purpose situations QuickMat is perfect. Great for light vehicle and pedestrian walkways, marquee flooring and general protection on grass and muddy areas.
PRODUCTS DESCRIPTION
Product introduction

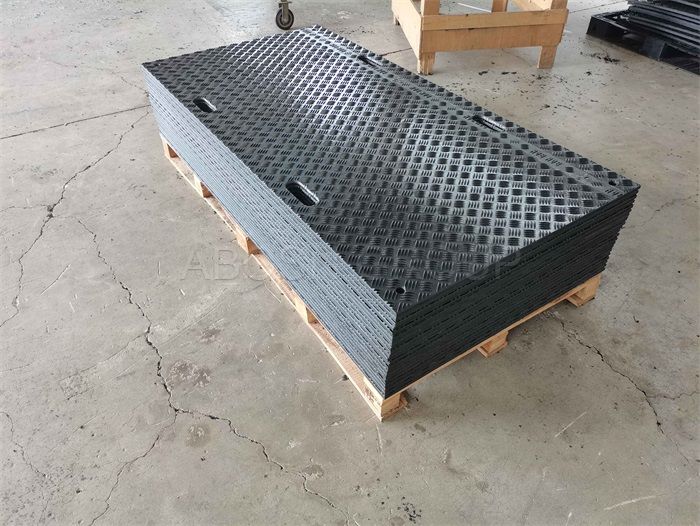

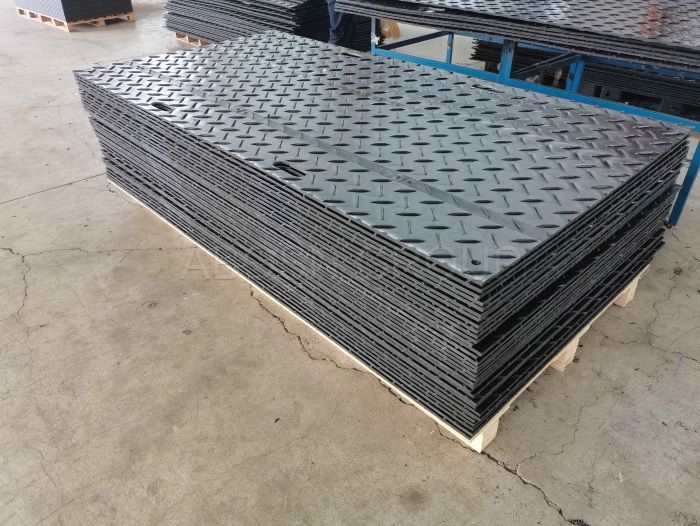

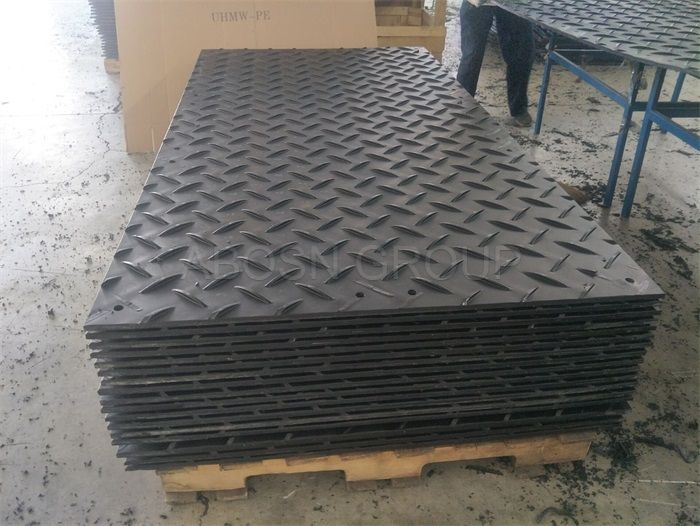

For effective man-handleable, temporary access over soft or sensitive ground , Abosn Ground Protection Mat is the essential ground protection mat for construction, civil engineering and ground work industries.
Abosn Ground Protection Mat is one of the best value for money ground protection & access mats on the market, manufactured from 100% virgin high density polyethylene (HDPE), can load up to 120 tonnes, although we advise running up to 80 tones on medium to soft ground.
Abosn temporary road mats is an ideal solution for a wide range of applications including temporary roadways, work pads, depot storage areas or pedestrian access and delivers vital protection to sensitive ground for example sport fields, golf courses, park land and landscaped areas
Series No. | Size (mm) | Thickness with texture (mm) | Unit weight (kg) | Effective Surface Area (sqm) | Load Capacity (tons) |
XE01 | 2000*1000*10 | 20 | 22.6 | 2.00 | 30 |
XE02 | 2440*1220*12.7 | 22.7 | 42 | 2.98 | 40 |
XE03 | 5900*2000*28 | 36 | 346 | 11.8 | 120 |
XE04 | 2900*1100*12.7 | 22.7 | 45 | 3.20 | 50 |
XE05 | 3000*1500*15 | 25 | 74 | 4.50 | 80 |
XE06 | 3000*2000*20 | 28 | 128 | 6.00 | 100 |
Remark: - For wheel correspond - Pattern height 5 mm for one side - Color: black, white, green, yellow , red, pink ,blue. - Customized color and size is available. - We support OEM, package and Logo all can be costomiezed | |||||
ABOSN pressed Composite Uhmwpe road mat
| Series No. | Size (mm) | Thickness with texture (mm) | Unit weight (kg) | Effective Surface Area (sqm) | Load Capacity (tons) |
XP01 | 3000*2500*38 | 47 | 293 | 7.50 | 120 |
XP02 | 4500*2500*38 | 48 | 351 | 9.50 | 120 |
XP03 | 3000*2500*25 | 34 | 195 | 7.50 | 100 |
XP04 | 3000*2500*20 | 29 | 158 | 7.50 | 80 |
Remark: - For wheel and tracked correspond - Standard color is black | |||||
3）. Advantage of HDPE ground protection mat:
Highest abrasion resistance of any polymer, 6 times more wear resistant than steel
Anti-Weather & Anti-Aging
Self-lubricating, Very low coefficient of friction
Excellent chemical & corrosion resistant
superior impact resistant, Noise- absorption, Vibration-absorption
Temperature range: -2600C ~ +800C; Very high resistance to cold,doesn't become fragile even under -1800
High tensile Strength
Non-Toxic and smell
UV resistance
Flame Retardant; Relatively low in water absorption
Excellent electrical properties
Good performance in resisting environment stress crack, 200 times of ordinary PE
No adhesion
Light weight and easier to handle and fix
Cost efficient; Resulting in low energy consumption
Does not rot, split or crack; 100% recyclable
Great liner material for industrial material handling applications
Easy Reprocessed
Ground protection mat Applications
The HDPE Ground mat is effective ground protection system.
Ø Protect your turf and provide access and traction over mud, sand, snow and other difficult surfaces.
Ø Create temporary roadways for all types of vehicles and equipment or large work pads for drilling,
Ø Administrative compounds, bone yards, temporary flooring, and other industrial application.
Ø Such as construction sites, golf courses, utilities, landscaping, tree care, cemeteries, drilling And they are great to save heavy vehicles from getting trucked in mud etc.
FAQ
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment?
A: 50% pay in advance and balance upon the B/L.
Q: What is the expected lifespan of your mats?
A: Our mats are designed for longevity with a typical lifespan of up to 10 years or more, depending on frequency and type of use.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: Are you trading company or manufacturer?
A: We are factory.
