Ultra-High Molecular Weight Polyethylene

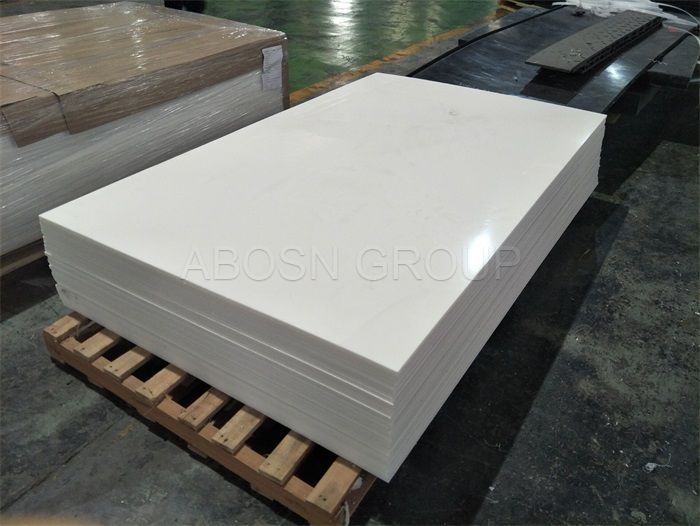

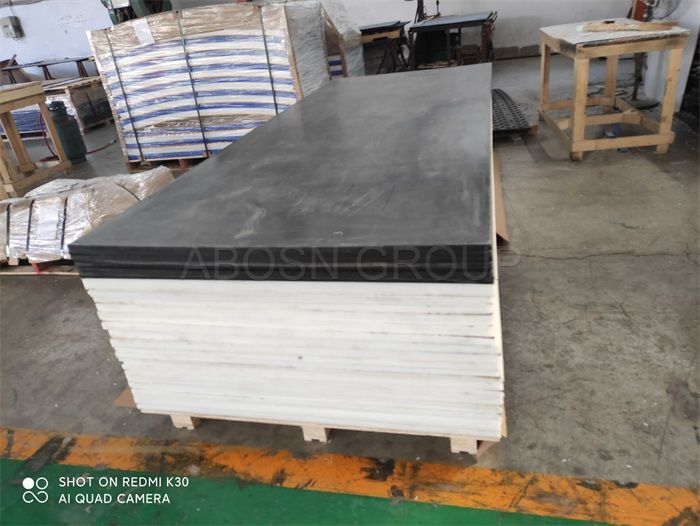

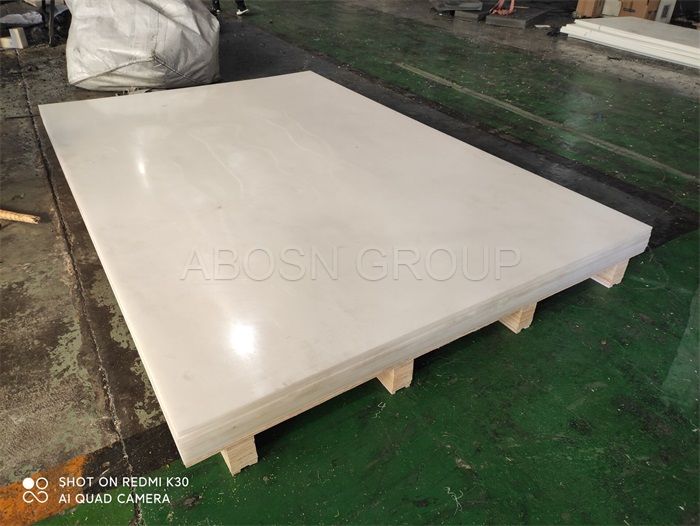

UHMWPE plastic sheet Specifications:

1. Thickness: 2- 300mm.
2. Width: 1000mm,1200,1300mm,1500mm,2000mm

3. Length: no limit
4. Surface: Smooth, Sand or corrugation.

5. Heating size change rate under 80°C: 52%  (standard ≤60% ).
6. Tensile Strength in lengthways: 8.08 Mpa (Standard ≥7.0Mpa).

7. Tensile Strength in transverse: 7.71 Mpa (Standard ≥7.0Mpa).

8，Weldable/Bendable - suitable for fabrication
UV Resistant - Black only
Physiologically inert - approved for food applications (Natural only)
Electrical insulation - it is a good insulator
Weatherproof - it doesn't absorb water
Chemical resistance - resists corrosive chemicals (e.g. Sulphuric Acid, Caustic Soda)

Functions of UHMWPE plastic wear resistance

Polymech High Quality UHMW Sheets, 10-250 mm
Ultra-high molecular weight polyethylene (UHMW-PE) sheet is a kind of linear structure with excellent comprehensive properties of thermoplastic engineering plastics. Ultra-high molecular weight polyethylene (UHMWPE) board has good wear resistance, impact resistance, corrosion resistance, light resistance, and other excellent properties.

1.Chemical engineering: anti-corrosion and chine parts, such as riding wheels, axle sleeves, mixing vanes, sealplates, vacuum moulds, pumparts, bearing backing, gears and so on.

2.Thermal power generation: conveying and storage of coal, Warehouse storage chute liner, lead acid battery separator(based on its electrical insulation property).

3.Coal processing: sieve plates, filter plates, U-shaped coal chutes, dam-boards, chutes, conveyor scrapers, buntons, belt carrier rollers, pulp shooting machine chafing plates, etc.

4.Metallurgy: liner of stock bins, coal bunkers, mixing tanks,etc.

5.Concrete: liner of concrete material house and finished product bin.

6.Papermaking industry: overhaul plate, suction box panel, paper machine part, scraper blade, guide plate, pressure parts, adapter connector, seal shaft lever, scraper, filter, etc
