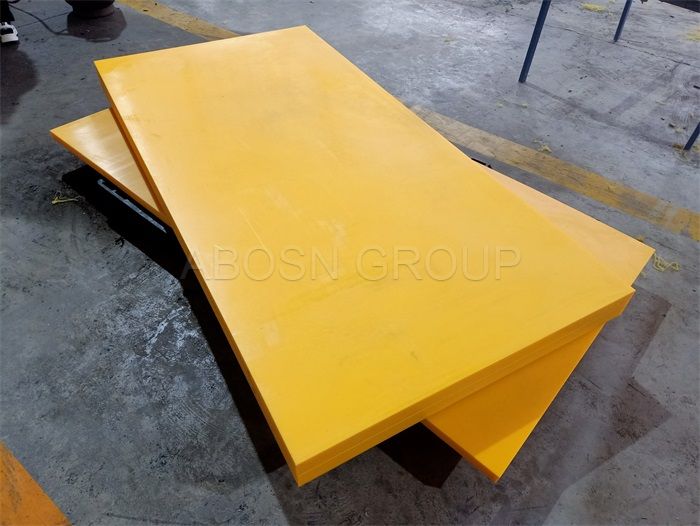

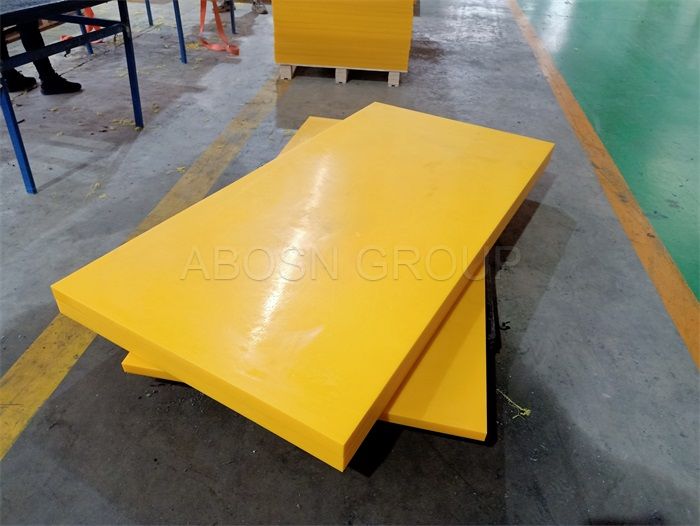

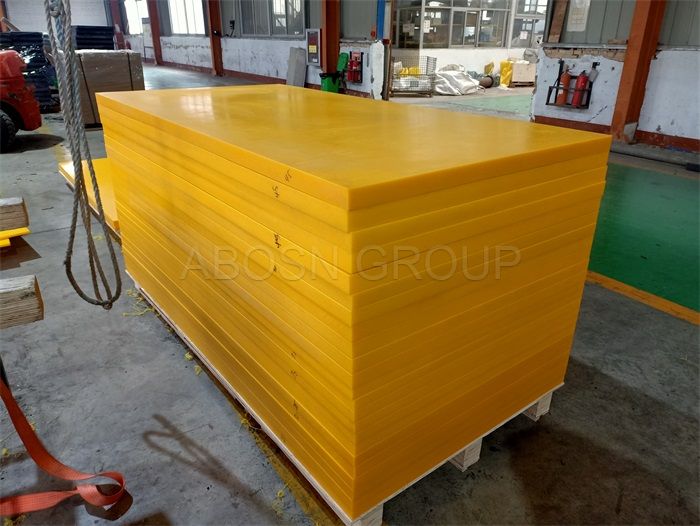

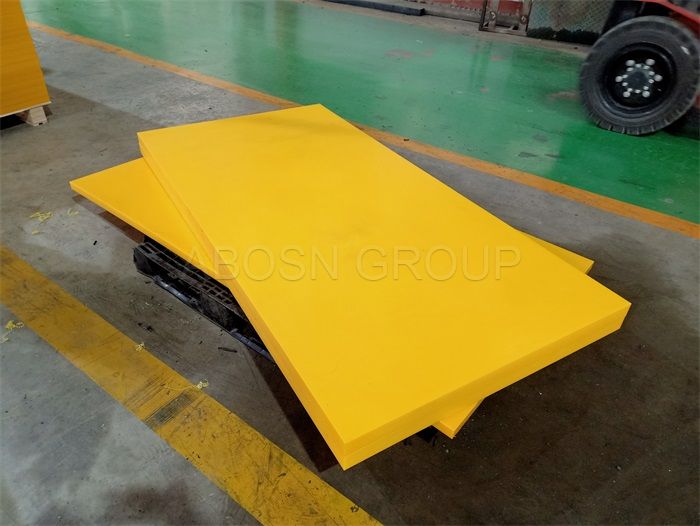

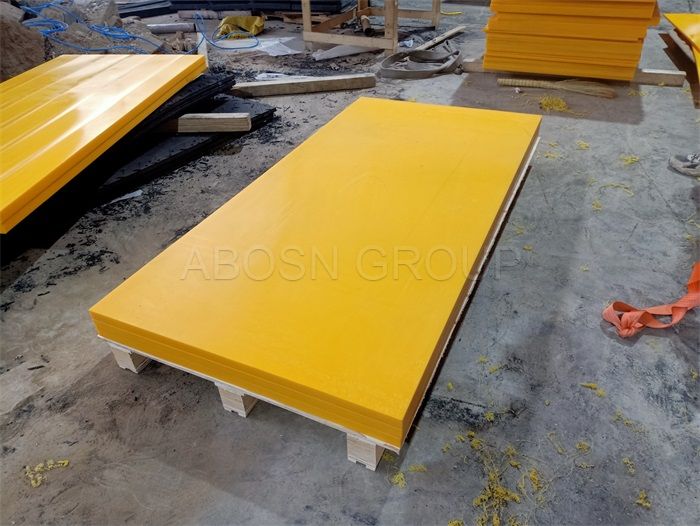

Custom Color And Size PE500 Ultrahigh molecular weight polyethylene Sheet

PE500 hdpe sheet polyethylene hdpe board

Length(mm)	Width(mm)	Thickness(mm)
2000	1000	6-300
3000	1500	6-300
4700	1200	6-300
5000	1300	6-300
4500	2000	6-300
3050	1220	6-100

Any small size need us to cut , we can satisfy your special need .

The properties of UHMW-PE:

Property	Unit	Value
Density	g/cm3	0.93-0.96
Average molecular weight	g/mol	3million- 10 million
Tensile strength (23°C in air)	MPa	22
Breaking strength	MPa	42
Tensile strain at break	%	600
Charpy impact strength (notched)	mJ/mm2	No break
Ball indentation hardness	N/mm2	42
Shore D hardness	--	65-70
Abrasion	%	70-80, steel = 100
Static Friction Coefficient	--	≤0.16
Kinetic Friction Coefficient	--	≤0.10
Water Absorption	--	NIL
Elongation at break at 23 degress	%	≥300
Temperature resistance	°C	-269 to +85
Melt Temperature	°C	130-140

Advantages:
1. Excellent wear resistance 2. Self-lubricating 3. Excellent abrasion Resistance
4. Blunt impact resistance 5. Corrosion and chemical resistance 6. Low-temperature resistance 7. Excellent machanical properties
8. Hygienic and non-poisonous. 9. Excellent machanical properties

Our UHMW-PE sheet Characters:

1.very flat on the surface

2.The thickness tolerance is +2 -0,some made according to your requirements.

3.The color is pure and any color can be made by us.

4.We can give you an accurate size of UHMW-PE Sheet with advanced machine.

5.Different shaped UHMW-PE Sheets also can be made by us like bending sheet.

6.According to different requirements with different application, special specifications can be customized, like anti-UV, fire-resistant,anti-static and with other characters.
