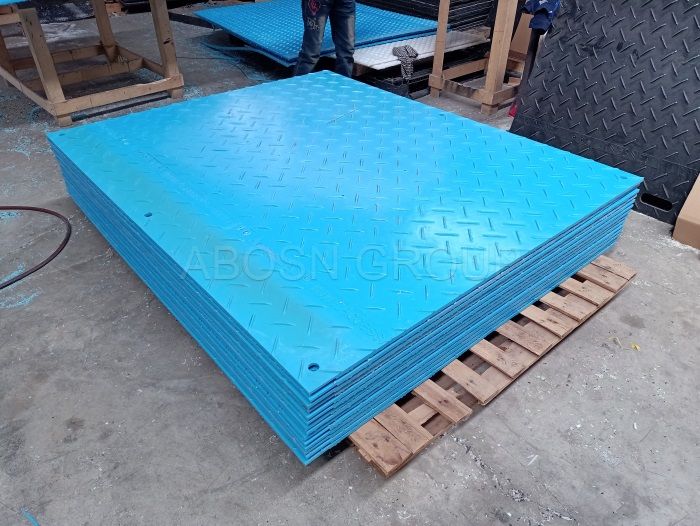

Plastic road plates Composite Mat System beach access mat

Standard size :4'x8'x1/2" with two sides patterns

Deflection: Tested on varying CBR ground conditions using a 300mm diameter steel platen with 6 tonnes load to simulate the pressure of an HGV wheel

Inquire Now

PRODUCTS DESCRIPTION

Material: Special blend of HDPE recycled plastic, fully recyclable

Overall Size: 1220x2440x12mm (without treads)

Surface Area: 3m²

Weight: 40kg

Tread Options: Roadway,Walkway and Smooth, or a combination

Connectors: 4 joining points, 4 handles

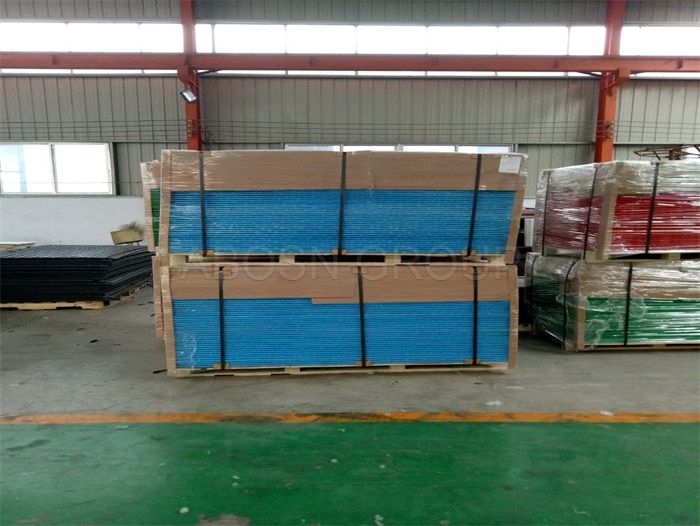

Packed in: Pallet of 30 mats

Pallet Pack: Weight: 1200kg

Dimensions: 2440x1200x800mm

Fire Rating: UL94 HB

Slip Testing: BS7976 part 2

Deflection: Tested on varying CBR ground conditions using a 300mm diameter steel platen with 6 tonnes load to simulate the pressure of an HGV wheel

Guarantee: 5 Years. If it is broken under normal use, we will replace for free

Plastic road plates Composite Mat System beach access mat

D. Loading Weight of Plastic road plates Composite Mat System beach access mat

Size	Thickness	Weight	Loading Weight
915x2440mm	12.7mm	31.25KGS	50 Tonnes
1220x1830mm	15mm	36.39KGS	60 Tonnes
1220x2440mm	20mm	63.40KGS	80 tonnes
1000x3000mm	25mm	78.90KGS	100 tonnes
2000x5900mm	30mm	369.34KGS	120 tonnes

E. Advantages of Plastic road plates Composite Mat System beach access mat

1.Solid one piece construction
2.Unique surface
3.Lower transport cost than other mats
4.Tough durable working areas and temporary roads for heavy plant, equipment and multiple vehicle
5.Protect against severe rutting and eco damage to ground and sensitive sites
6.Support health & safety objectives
7.A reversible low profile surface for drilling rigs, work pads, depot areas and helipads
8.Connection options for different terrain & equipment
9.Non-conductive - ideal for use on transmission projects
10.Designs and manufactured in China

F. Application of Plastic road plates Composite Mat System beach access mat

a.Construction, civil engineering and groundwork
b.Pedestrian walkways
c.Emergency access routes
d.Temporary roadways and car parks
e.Utilities and infrastructure maintenance
f.Landscaping and protection of heritage or eco-sensitive areas
g.Golf course and sport field maintenance
h.Sports and leisure events
i. Beach access for wheelchair
j. Helicopter landing

G. Different Color of Plastic road plates Composite Mat System beach access mat

FAQ

Q: Are you trading company or manufacturer?

A: We are factory.

Q: What is your terms of payment?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.

Q: What are Abosn mat made from?

A: Most of our mats are made from Virgin High-Density Polyethylene (HDPE) which is extremely strong and lightweight. For black, we use some recycled HDPE.

Q: What is the expected lifespan of your mats?

A: Our mats are designed for longevity with a typical lifespan of up to 10 years or more, depending on frequency and type of use.
